Access Control Mobile Phone Open Door Module Controller APP WIFI Receiver
Access Control Mobile Phone Open Door Module Controller APP WIFI Receiver
1. Device introduction
The device is suitable for various entrance and exit access control systems, building intercom systems and garage door systems, etc.
It can realize the function of opening the door by mobile phone on the basic of not changing the function of the original system,
and it is convenient for the user to use in the process of entering and leaving.
In order to realize the purpose of the mobile APP to open the door lock/channel/gate/garage door, the device is powered by DC12V, output switching signal,
it can be connected to the switch signal input of the controlled system. The output signal of the device is a self-reset switching signal, it can be used in access control systems,
building intercom systems and garage door systems directly, If you need to use this device to control electric light and other electrical equipment,
please contact the manufacturer to make circuit adjustment before finish the production.
The device has a built-in wireless module, it can be normal use after connect nearby WIFI.
The WiFi signal strength and the stability of the network connection have an important impact on the user experience, during using the device,
the closer distance from the goods to transmitter of WIFI, the effect is better.
The device should be avoided to be installed in metal objects, the metal will interference and blocking the WiFi signal,
the device cannot connect to WiFi in a enclosed metal space completely.
2. Technical Parameters
Working Voltage: DC12V
Working current: ≤210mA
Standby current: ≤80mA
Working mode: Control by Mobile APP （eWeLink）
Networking method: WiFi@2.4GHz 802.11b/g/n Supporting WPA/WPA2 security mode
Wireless network type: STA/AP/STA+AP
Security Mechanism: WEP/WPA-PSK/ WPA2-PSK
Encryption type: WEP64/WEP128/TKIP/AES
Firmware upgrade: OTA remote upgrade
Environment humidity: 10%～90%RH
Adaptive temperature: -35℃～125℃

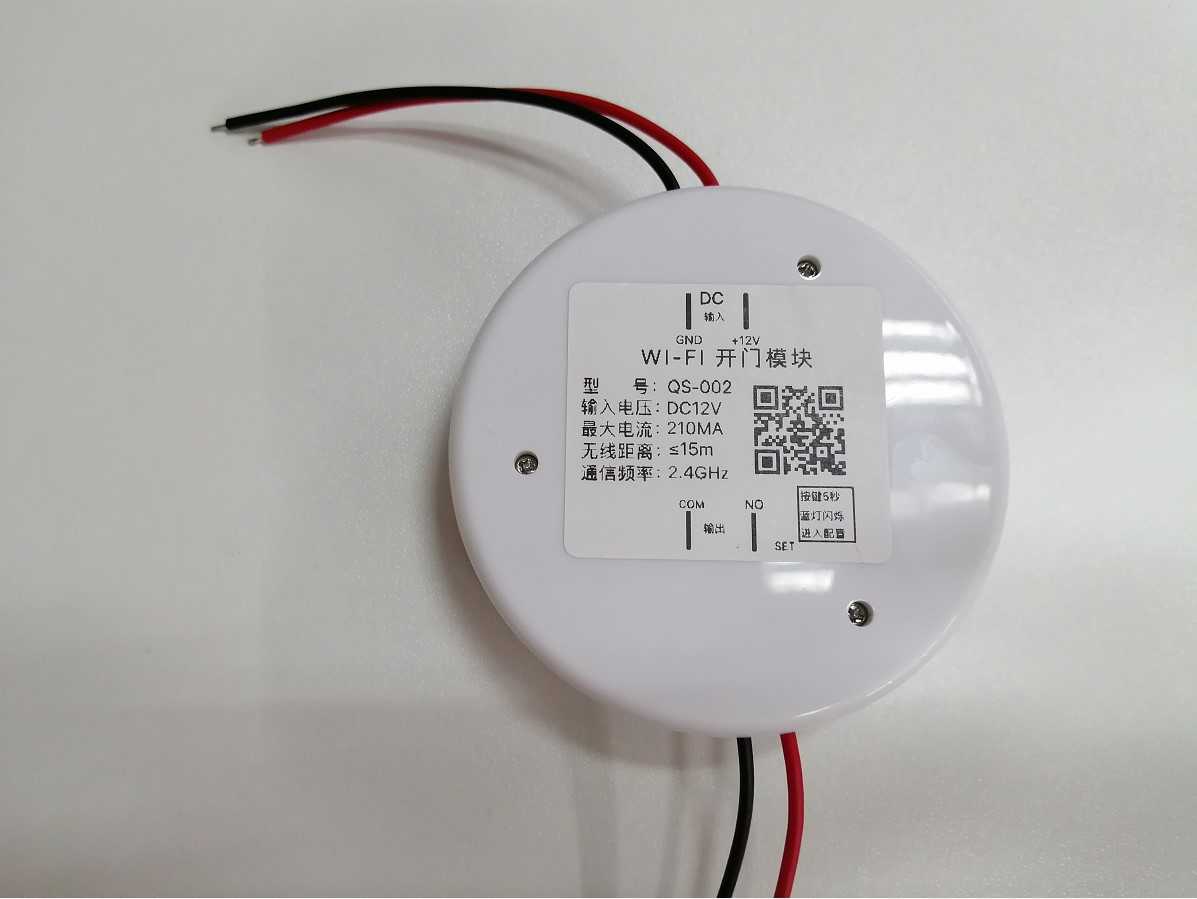

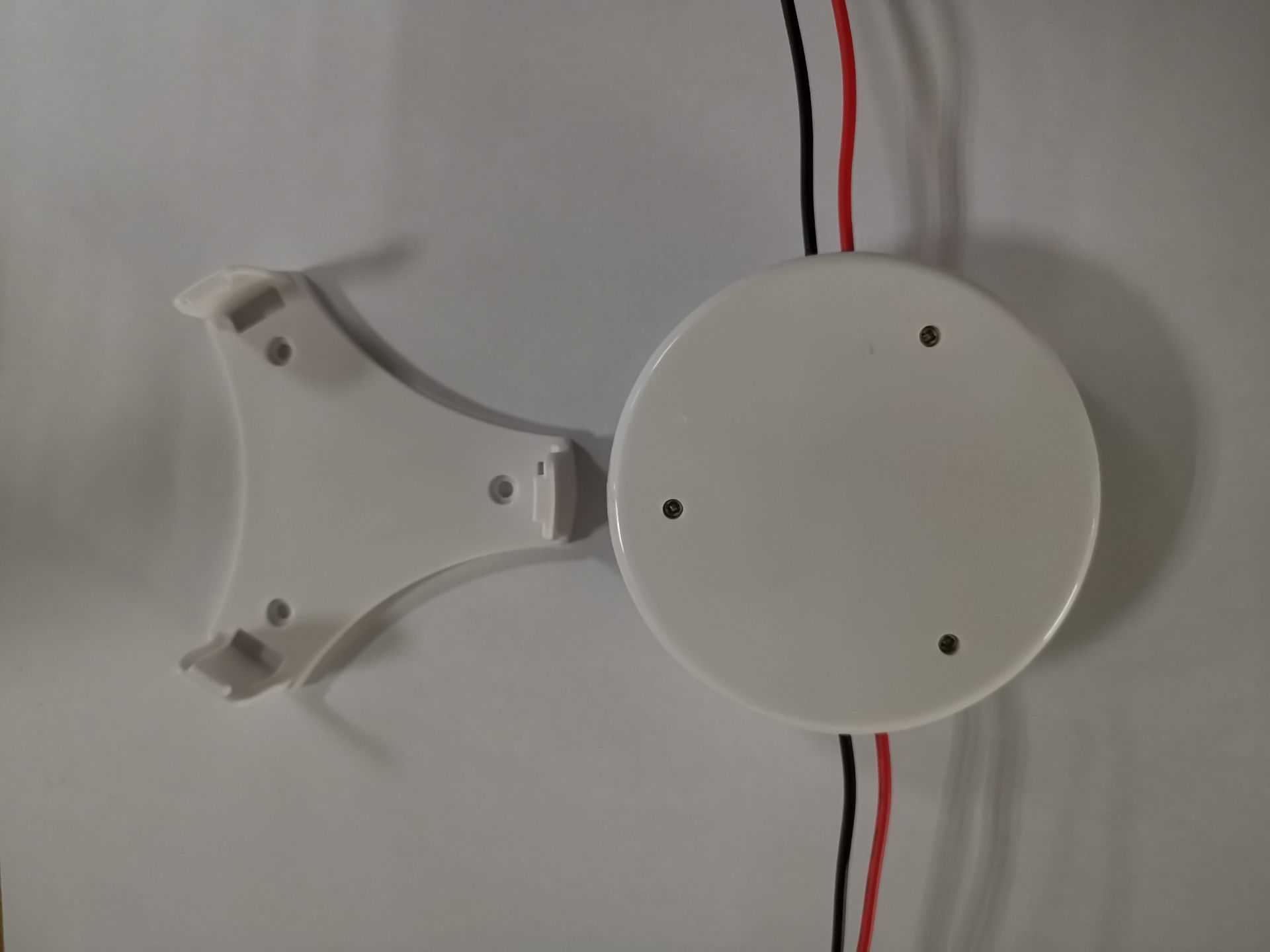

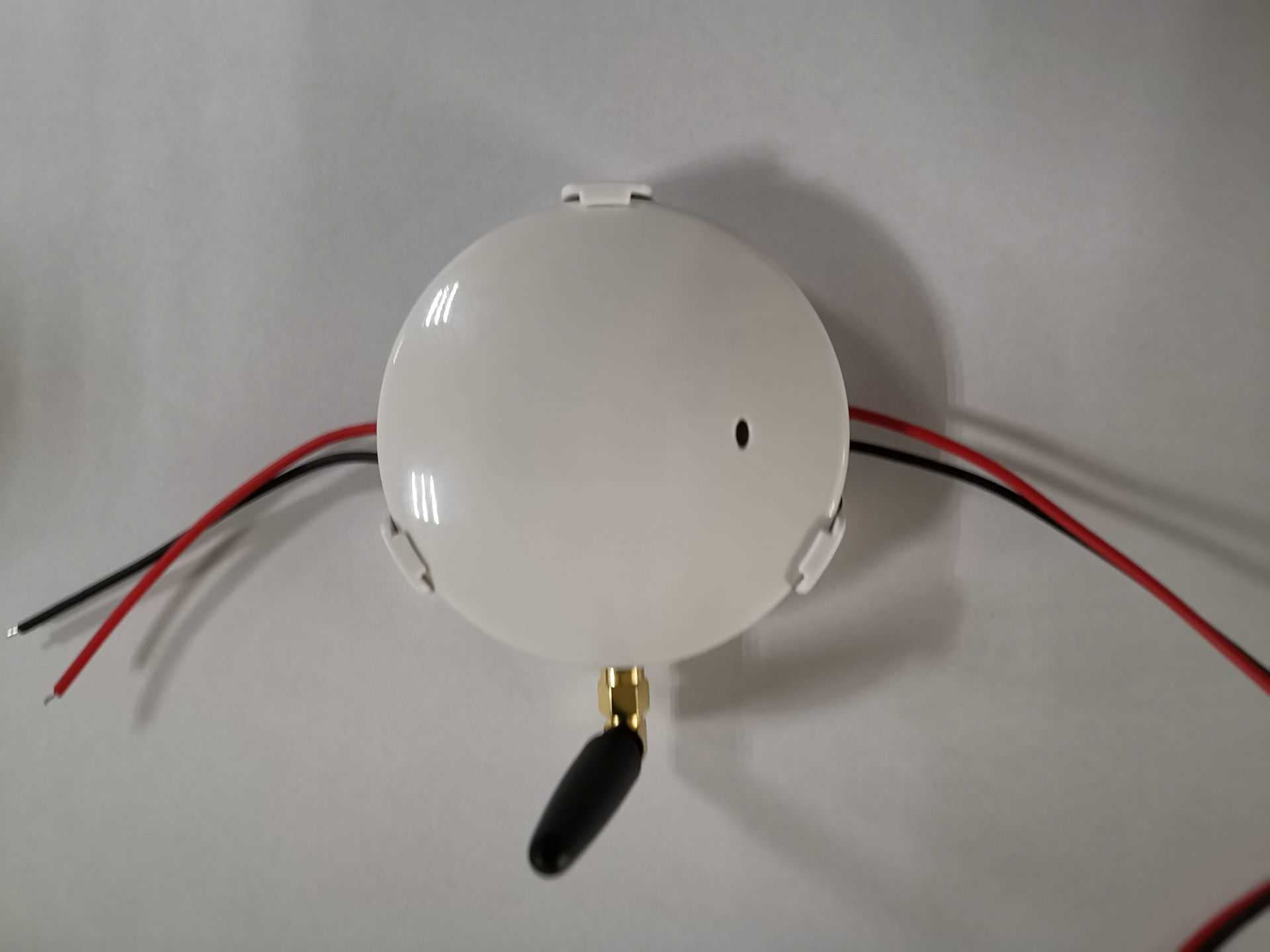

Physical dimension: 83*83*27mm
It can be connected to the access controller's exit button input, PUSH and GND of the access control power supply, PB and GND of the garage door opener, etc.
4. Mobile APP download and operation instructions
( 1 ). Scan below QR code to download the app or search for "eWeLink" in the mobile app store.
(Foreign user can search eWeLink on Google Play or Apple App Store)
( 2 ). Please open the “eWeLink” app and register the account after download the app. Log in after registration is complete.
Confirming that the device is connected to the circuit properly and powered;
The phone is connected to WIFI and the WIFI password right;
Press and hold the configuration button on the device for more than 5 seconds until the indicator light change from red light to blue light and flash 3 times;
Open the "eWeLink" app and click the "+" button in the below center(As picture 1);
Select the "Quick Add" mode(As picture 2);
After selecting the WIFI name and entering the password, click "Next step"(As picture 3);
If the network is available, then wait for the add to complete patiently.(As picture 4);
If there is a prompt for pairing failure, please follow the prompts to check and troubleshoot, then repeat the above steps.
Modify the device name to a custom name;
In the device list, it can share the device to other registered accounts and other functional settings after click the device to enter the management page .
5. Extended functions
( 1 ). Multiple devices can be linked to implement scene actions.
( 2 ).Camera and smart video doorbell can be added for monitoring(It Docking with eWeLink camera and Haikang fluorite camera, eWeLink intelligent visual doorbell).
( 3 ).Implement intelligent voice control(Docking voice robots for Amazon Alexa, Google Home, IFTTT, Nest, Xiaomi Mijia, Tmall Elf, Fluorite, Dingdong)
6. Precautions
( 1 ): The device can only be configured by one account. Please delete the device in the app after the test is completed. Otherwise, subsequent users cannot configure the device.
( 2 ): In the process of sharing devices to other accounts, it is recommended that shared users register an account in advance,And open the notification permission of the "eWeLink" .
For face-to-face users, it is recommended that the shared user login account and open the “Easy Weilian” APP page to wait for the sharing notification .
